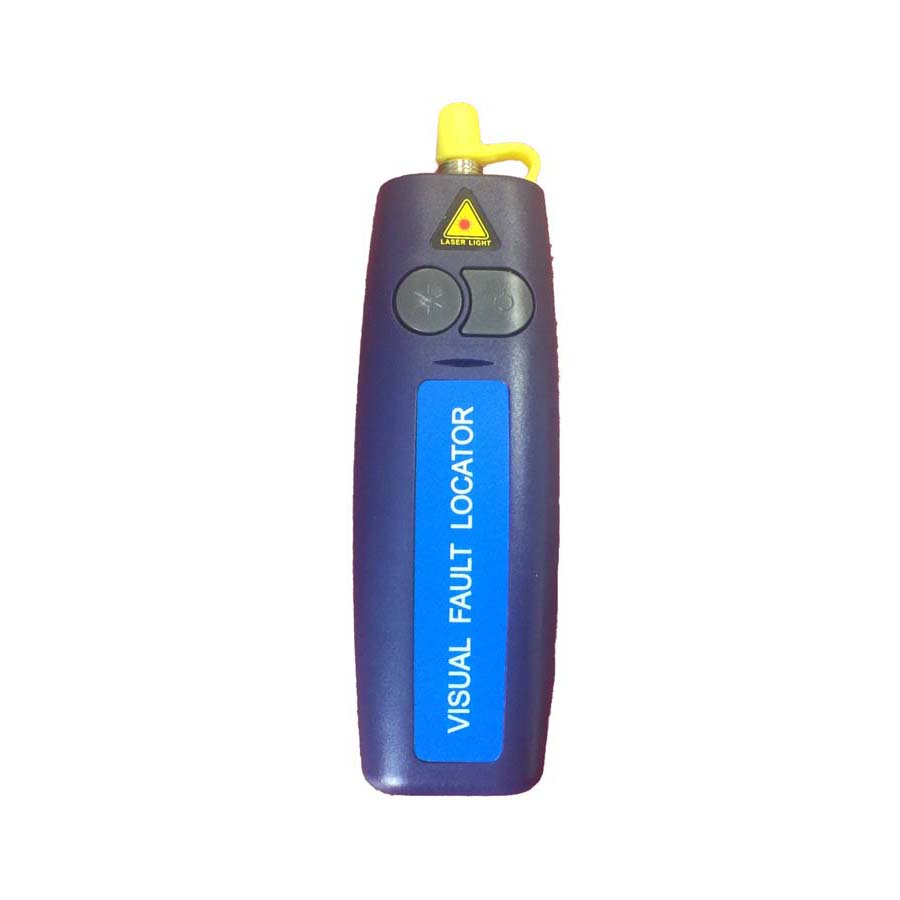

    Portable Pen Type Visual Fault Locator 3 for FTTH FTTX Networks SC Type 10km Distance

    Ask Lasest Price
    Model Number : LV series
    Brand Name : LinkU
    Price : $5.30 - $14.40/units
    • Product Details
    • Company Profile

    Portable Pen Type Visual Fault Locator 3 for FTTH FTTX Networks SC Type 10km Distance

    Products Description
    Description: The Visual Fault Locator is usually used to find the broken point in optical fiber/cable, patch cord, and etc. It is a perfect complementary tool for OTDR because of its capability of finding breaks in the dead zone of OTDR.

    Features: ❖ Mini size design, portable and durable
    ❖ Universal connector, ceramic tube replaceable
    ❖ CW/2Hz modulated output

    Product Paramenters
    Model #
    LV - 01
    LV - 10
    LV - 30
    Laser Launcher Level
    CLASS IIIA
    CLASS IIIB
    CLASS IIIB
    Output Power (1)
    1mW
    10mW
    30mW
    Detecting Range (2)
    About 5km
    About 12km
    About 15km
    Laser Launcher Type
    LD
    Optical Connector
    universal 2.5mm adapter
    Output Wavelength
    650nm±10nm
    Modulation Frequency
    CW / 2Hz
    Power Supply
    2 * AAA Batteries
    Working Temperature
    -10℃~+50℃; <90%RH
    Storage Temperature
    -20℃~+70℃; <90%RH
    Dimension & Weight
    113×34×20 mm (L×W×H) ; 70g
    Standard Accessories:
    carrying bag, manual
    Optional Items
    FC Adapter, SC Adapter, FC(Male) to LC(Female) Adapter for LC Connector
    Note:
    (1) The output power is figured out by multi-mode optical fiber at 23℃±3℃
    (2) Detecting range will be different with different fibers.

    If you have special needs of customized products, please contact us.
