    ODN Network Fiber Optic Multimeter LM 2 Series Integrates Power Meter and Light Source

    Ask Lasest Price
    Model Number : LM-2 series
    Brand Name : LinkU
    Supply Ability : 500 Unit/Units per Month
    Price : $48.00 - $88.00/units
    • Product Details
    • Company Profile

    ODN Network Fiber Optic Multimeter LM 2 Series Integrates Power Meter and Light Source

    Products Description

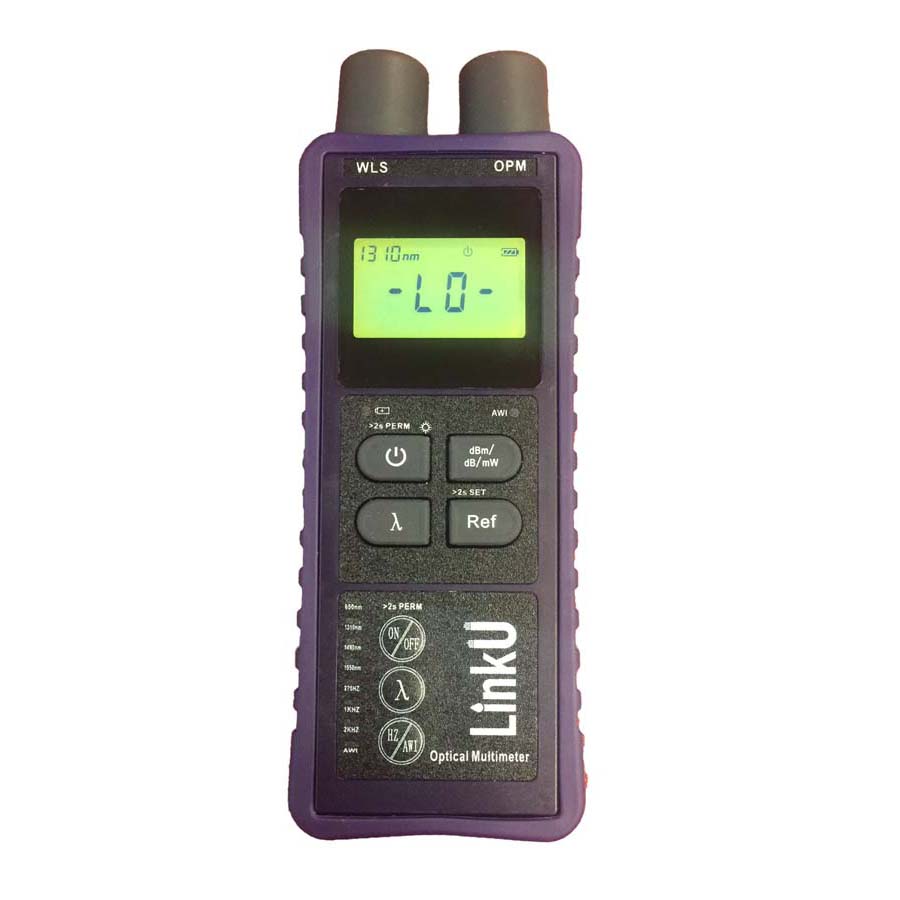

    Description: LM series Optical Multimeter, integrates an optical power meter, a laser source and a visual locator, is an ideal instrument used to test power, loss, continuity and faults on fiber optic systems.

    Features: ❖ Auto-wavelengths recognition. ❖ Auto power-off, Back-light. ❖ Integrated with visual fault locator (Optional).

    Product Paramenters
    Model
    LM-2 Series
    Calibration Wavelength
    850/1300/1310/1490/1550/1625nm
    Connector
    interchangeable FC/SC (ST optional)
    Display Units
    dB/dBm/mW/uW
    Display Precision
    0.01dB
    Accuracy
    ±5%±1nW
    Wavelength Recognition
    1310/1490/1550 (input power≥-40dBm)
    Tone Detection
    270Hz/1KHz/2KHz (input power≥-40dBm)
    Power Meter
    LM-2TD / -2TP / -2TQ : -70 to +10dBm
    LM-2CD/ -2CP / -2CQ : +26~-50dBm
    Laser Source
    LM-2TD / -2CD : 1310/1550 nm
    LM-2TP / -2CP : 1310/1490/1550 nm
    LM-2TQ / -2CQ : 850/1300/1310/1550 nm
    Connector
    fixed FC/PC (interchangeable FC/SC/ST customized)
    Modulation Frequencies
    270Hz/1KHz/2KHz
    Output Power
    -5dBm±0.5dB
    Output Stability
    ±0.1dB@1310/1550nm; ±0.15dB@1490nm
    Wavelength
    650nm ±10nm
    Output Power
    1mw
    Power Supply
    2 * AA Batteries; AC/DC Adapter
    Operating Temperature
    -10℃~+50℃
    Storage Temperature
    -20℃~+70℃
    Dimension &. Weight
    160×58×32 mm (L×W×H);160g
    Standard Accessories:
    FC/PC adapter, carrying bag, Manual

    If you have special needs of customized products, please contact us.
